Flammable Liquids Conductivity (Updated 1/18/14)

By ex-dev / January 18, 2014

A little background on what this table is telling us:

NFPA 77 classifies flammable liquids as Conductive, Semi-Conductive, and Non-Conductive:

Conductive Liquids = >10,000 pS/m

Semi-Conductive Liquids = >100<10,000 pS/m

Non-Conductive Liquids = <100 pS/m

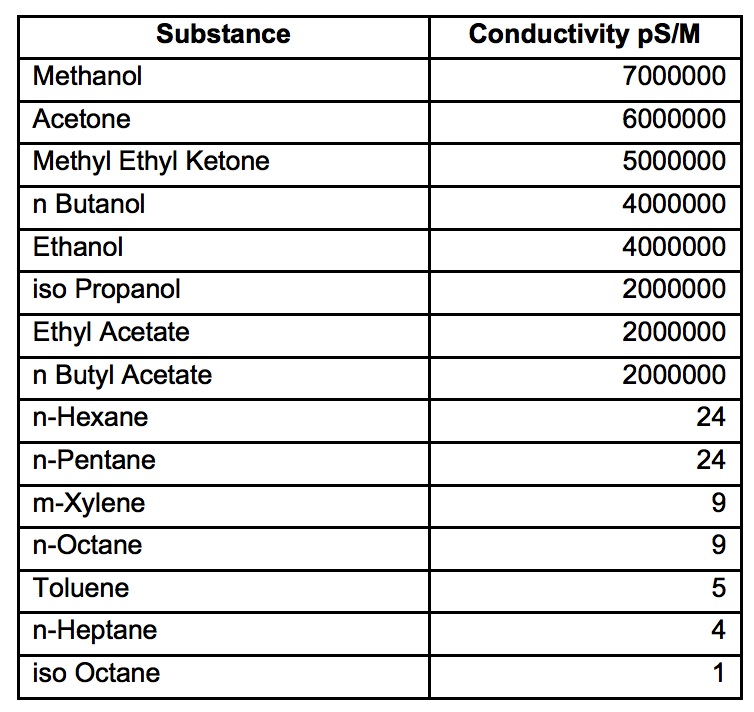

In the tables below, 1 conductivity unit (C.U.) = 1 picosiemen per meter (pS/m)
